HOT-DIP GALVANIZED STEEL COILS (GI)

Classification:galvanized steel coils
Views:second
Date of issue:2021-01-22 16:15:32

I want to make an inquiry.

Product overview
Optional Accessories

PRIME HOT DIPPED GALVANIZED STEEL COILS AS PER ASTM A653/A653M:2001, CS TYPE B, CHEM TREAT, DRY, REGULAR SPANGLE, ZINC COATING Z180

APPLICATION

Boxes, Containers, Cooler Body, Ducting, Roofing, Silos, Automotive Parts, Vending Machines, Computer Cases, Wire Cases, Scaffolding, Deck, CZ Purlin

SPECIFICATION

STANDARD	JIS G3302, ASTM A653 / A653M / A924M, IS277/92, AS 1397, EN 10142, EN 10147, DIN 17162, ES C.D7.001 equivalent
SUBSTRATE	Full Hard, CQ, D / DD / LFQ & Structural
ZINC COATING	Z30-Z275
SURFACE FINISH	Regular Spangle, Minimized Spangle, Skin-Passed, Extra Smooth Galvanized annealed
SURFACE TREATMENT	Chromated / Unchromated Treatment, Oiled Resin Coated (Anti Finger Print), Dry
EDGE CONDITION	Trimmed / Mill Edge

AVAILABLE SIZES

THICKNESS	0.12 mm to 3.20 mm
WIDTH	97 mm to 1250 mm
COIL ID	508 mm / 610 mm

Thick	0.12 ~6.0 mm
Width	600-1500 mm
Zinc Coating	30~600G/M2
Coil ID	508 / 610MM
Coil Weight	3-5 Tons
Standard	ASTM-A653; JIS G3302; EN10147;etc
Payment Terms	T/T, LC, Kun Lun Bank, Western Union, Paypal, O/A, DP
Regular Order	25 tons one container, for less quantity, to contact with us for details
Hardness	Soft hard(HRB60),medium hard(HRB60-85),full hard(HRB85-95)
Surface Structure	Regular spangle,Minimum spangle, Zero spangle, Big spangle
Surface Treatment	Chromated/Non-Chromated, Oiled/Non-oiled, Skin pass

Astm A653 Galvanized Steel Coils G90 G40 Metal Sheeting Prices

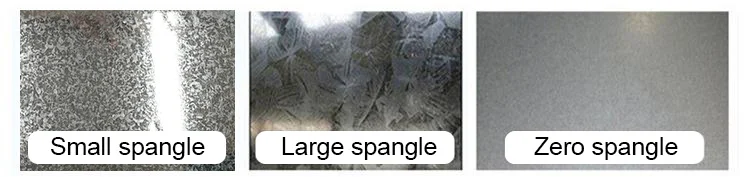

1,Different Surface:Small,Large,Zero. as per your requirement

2,Application:
Building & Construction:
Roofing; Terrace; Window Frame;
Door:
Rolling-up Door; Shutter; Mobile House;
Interior Decorations:
Wall; Door Frame; Steel Structure; Screen; Ceiling;Elevator;
Household Appliances:
Fridge; Washing Machine; Microwave Oven; Air-Conditioner; Duplicating Machine,etc;
Transportation:
Auto Panel; Interior Decorative Panel; Carriage Panel;

Astm A653 Galvanized Steel Coils G90 G40 Metal Sheeting Prices

3,Stock:

Stock for regular products available, welcome to contact us to get stock list .

Astm A653 Galvanized Steel Coils G90 G40 Metal Sheeting Prices

Package	3 layers of packing, inside is kraft paper, water plastic film is in the middle ouside GI steel sheet to be covered by steel strips with lock, with inner coil sleeve .
Monthly Output	10000 tons
Remarks	Insurance is all risks accept the third party test
Loading Port	Tianjin/Qingdao/Shanghai Port
